Aerospace Etching – Metal Etching for Aerospace Industries


In the journey of exploring the vast universe, aerospace technology, as the crystallization of human wisdom and courage, continues to break through the limits and move towards a deeper starry sky. Behind this cutting-edge technology, the high-precision etching process is like an invisible key, quietly opening the door to many technical problems. Its unique application in the field of aerospace has brought unprecedented innovation and development to this industry.

Metal Etching for Aerospace Industries

Aerospace etching represents a specialized manufacturing process that has evolved significantly over the years, catering to the unique requirements of the aerospace industry.

The process involves the controlled removal of material from a substrate to achieve specific features or patterns, which can enhance the functionality, performance, and appearance of aerospace components.

From the early days of aviation to the latest advancements in spacecraft technology, etching has played a pivotal role in the design and production of various aerospace parts.

As aerospace applications become increasingly complex, the demand for precision and customization in manufacturing processes like etching has grown. The use of advanced materials and cutting-edge techniques allows manufacturers to produce components that meet stringent performance standards while optimizing weight and durability.

Our Precision Aerospace Etching Service


If you need aerospace parts etched we are one of the most capable and affordable sources specializing in manufacturing custom etched parts on advanced photo etching machines with cnc precision. Through our Photo Chemical Etching process, the smallest and most complex designs are made possible such as electrical spring contacts, contact membranes, busbars, antennae and micro antennae, spring fingered contacts, heating elements and battery terminal as well as many other bespoke components to your own designs.

We can machine to print and accept the most common file formats including: .dwg .dxf .iges .step .sat as well as .pdf files. If you don’t see your file format here let us know. Please send us files to: [email protected] We can accept both small and large run jobs of custom aerospace etching parts.

Our Etching Capabilities

  • Etching of many grades of metal and more
  • Combining Stamping, Laser Cutting,CNC machining and photochemical etching on sheets up to 2mm thick
  • Etching of up to 0.025″ thick sheets as large as 22×12 inches
  • Tolerances of ±.0005″ in many applications
Our Precision Aerospace Etching Service

How To Etch Aerospace Parts


Flexible Used Of Aerospace Etching Technology


The etching process plays a vital role in the aerospace sector, offering extensive versatility. Here are some key applications:

1

Turbine Blade Cooling Structures

Turbine blades in jet engines operate in extreme temperatures, necessitating efficient cooling systems to ensure longevity and performance. Etching techniques can precisely create intricate cooling channels on the blade surfaces. For instance, chemical or plasma etching can form cooling holes and internal passages as per design specifications, allowing cooling air to flow evenly across the blade, effectively dissipating heat and enabling the blades to withstand gas temperatures exceeding thousands of degrees Celsius.
Advanced etching processes can lower the operational temperatures of turbine blades by significant margins, enhancing engine reliability and performance. Furthermore, precise control over etching parameters ensures that the cooling channel dimensions achieve micron-level accuracy, maintaining consistency and stability in cooling efficiency.
2

Thermal Barrier Coating Surface Treatment

To further enhance high-temperature resistance, thermal barrier coatings are applied to components like turbine blades. Etching can prepare and post-treat these coatings to improve adhesion and performance. Prior to coating, surface etching increases roughness, enhancing bonding strength with the substrate material. Laser etching, for example, can create microscopic features on the blade surface, boosting adhesion strength by over 20%.
During the use of thermal barrier coatings, etching techniques can also repair surface damage. If cracks or delamination occur, precise etching can remove affected areas, allowing for effective re-coating and restoration of component performance.
3

Honeycomb Structure Manufacturing

Modern aircraft employ honeycomb structures extensively to reduce weight while enhancing fuel efficiency and performance. Etching is crucial in producing these structures by precisely defining hexagonal or other patterned cells on sheets. Chemical etching can create these configurations in aluminum or composite materials, yielding high strength and stiffness at reduced weight.
Data indicate that honeycomb structures made via etching weigh only a fraction of traditional solid materials yet can support substantial loads, contributing significantly to the overall reduction of aircraft weight and improved fuel economy.
4

Composite Material Processing

The use of advanced composites, such as carbon-fiber-reinforced materials, is increasingly prevalent in aerospace applications. Etching enables precise cutting, drilling, and surface treatment of these materials. Laser etching technology can create high-precision features without damaging the composite, offering superior accuracy and reduced thermal impact compared to conventional methods.
Additionally, etching can introduce micro-textures on composite surfaces, enhancing adhesion and coating properties, which is crucial for improving durability and lowering maintenance costs in aircraft structures.
5

Integrated Circuit Chip Processing

High-performance integrated circuit chips are central to aerospace electronics. Etching is a key technology in IC manufacturing, allowing for the creation of complex circuit structures on semiconductor materials through repeated lithography and etching processes. In aerospace applications, these chips must exhibit high reliability and performance under harsh conditions, where etching precision directly influences functionality.
For instance, when manufacturing microprocessor chips for aviation, high-precision etching techniques are employed to create nanoscale transistors and circuit interconnections, enabling stable operation in extreme temperatures and vibrations for flight control, navigation, and communication systems.
6

Sensor Manufacturing

The aerospace sector requires various high-precision sensors to monitor aircraft status and environmental parameters. Etching plays an essential role in sensor fabrication, enabling the production of sensitive elements and circuitry on microchips for pressure, temperature, and acceleration sensors.
In pressure sensors, for example, micro-etching creates tiny pressure chambers and strain gauges, allowing for accurate measurement of minute pressure changes. The precision of etching directly impacts sensor accuracy and reliability, with stringent requirements in aerospace applications, ensuring safety and performance optimization.
7

Anti-Icing Coating Treatment

Ice formation on aircraft surfaces at high altitudes poses serious safety and performance risks. Etching processes can treat surfaces with anti-icing coatings by introducing microscopic textures that modify wettability and icing characteristics. Laser etching can create nanoscale structures that prevent water droplet adhesion and freezing.
Experimental results show that etching-treated anti-icing coatings can significantly extend ice delay times, reducing the likelihood of icing. This process also enhances coating durability and lifespan, lowering maintenance costs.
8

Stealth Coating Optimization

For military aircraft, stealth capabilities are critical. Etching can optimize the structure and performance of stealth coatings by creating specific micro-patterns that scatter and absorb radar waves, reducing radar cross-section. Plasma etching can manufacture nanoscale roughness on stealth coatings, enhancing their radar-absorbing effectiveness.
Moreover, etching can control the thickness and uniformity of stealth coatings, ensuring stability and reliability in stealth performance, making it an essential technology in the manufacture of stealth aircraft.

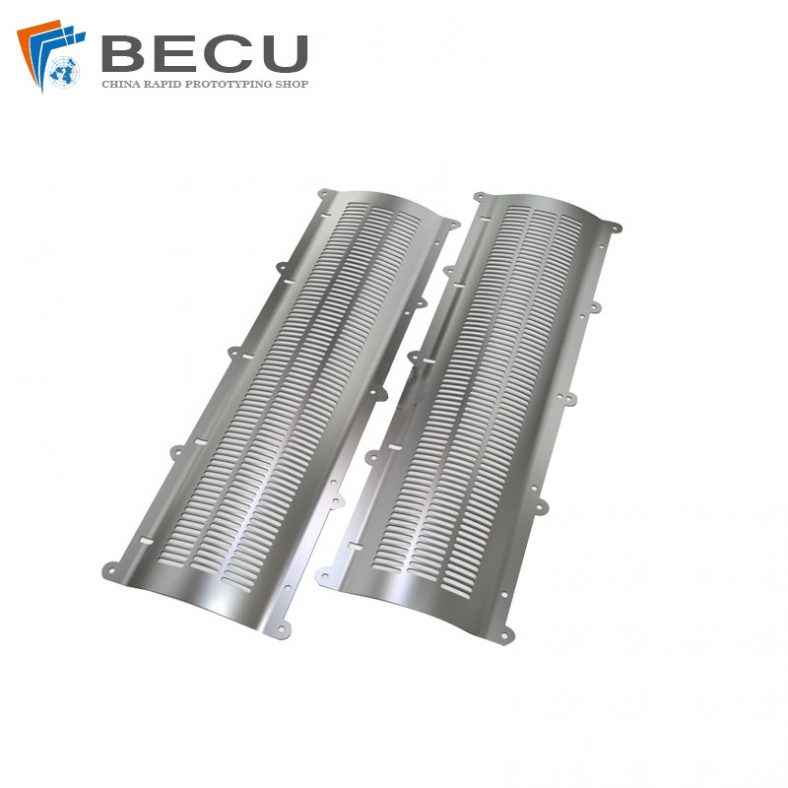

Components That Are Produced By Etching Aerospace Parts


The popularity of aerospace makes it a desirable metal for use in fabrication because it is easy to manufacture and has favorable properties for many industrial products.With the photo etching process, the metal is etched evenly without any structural deformations from the hard tooling used in stamping and punching.Since there isn’t a heat point of contact like laser cutting, the parts’ metal properties remain unchanged and free from thermal deformations.Get inspired by our custom etching part projects and contact us to Get Instant Quote for rapid prototype or aerospace etching parts start from 1pcs.

Metal Etching Certification,Equipment List and Quality


We are committed to enlisting the full support of all employees to continuously improve our processes and enhance quality, thereby fulfilling our customer's needs with defect free products and services, on time and every time

  • ISO 9001:2015 certified
  • Compliance in DFARS materials sourcing requirements
  • Strict compliance with PPAP and Process FMEA
  • Fully compliant with the exacting requirements of our customers
  • ITAR registered
  • NIST cybersecurity standard compliant
  • Proprietary Patented quality systems
  • Skilled in KanBan and other customer driven quality and inventory management systems

Metal Etching Material


BE-CU is experienced in precision etching various metals, allowing customers the freedom to specify components in hundreds of different materials.

The Surface Treatment Of Metal Etching Parts


Do you want your etching parts to be more corrosion-resistant or get a specific look? Metal finishing service is a essential choice to achieve your design perfectly. BE-CU – metal-etch.com is an accomplished finished parts manufacturer, our workers and craftsman are capable to provide precision metal etching services and a wide range of finishing services including aluminum anodizing, painting, passivation, electroplating, powder coating, polishing, black oxide, conversion coating, abrasive blasting, etc. We offers several common surface finishes to help improve functionality and aesthetics.

  •  Anodizing (Anodized)
  • Passivation
  •  Plating (Electroplating)
  •  Painting
  • Black Oxide (Hot Blackening)
  •  Polishing
  • Powder Coating
  • Heat Treatment
  • Satin Finish
  • Abrasive blasting (Sandblasting)
  • Conversion coating
  • Tungsten carbide coating

After browsing a list of metal finishing services, select a process based on essential considerations, like production time, cost-effectiveness, part tolerance, durability and applications. High-tolerance metal etching parts are not recommended to apply secondary metal surface finish, because the treatment may change the sizes of the finished part through removing or adding a small amount of materials.

Other requirements or custom designs, welcome to contact us for a free quote fast!
